ADYS系列高效節能全塑防爆熒光燈(IIC)
|
|
| |
|
適用范圍
1、1區、2區危險氣體場所;
2、IIA、IIB、IIC類T1～T4組爆炸性氣體或蒸氣環境;
3、可適用于石油化工、船舶、海上鉆井、采油平臺等場所；
4、戶內、戶外（IP55)。
Application
1、Hazardous gas areas: Zone 1＆2;
2、Explosive gas or vapor atmospheres :Class IIA、 IIB、IIC, temperature class: T1～ T4;
3、Suitable for the palces of petrochemicals, ship, artesian well on sea and petroleum platform etc.
4、Indoor and outdoor(IP55). |
產品特點
1、外殼采用SMC模壓成型，具有較強的抗沖擊能力，燈罩 采用聚碳酸脂注塑成型，具有較高的透光性；
2、密封性能可靠，具有良好的防塵、防水、防腐功能；
3、發光率高，cosF≥0.95;
4、配裝應急裝置，可做應急照明兩用燈；
5、內裝燈管可根據要求選用單腳燈管或雙腳燈管；
6、多種安裝形式，滿足不同場所需求。
The shell adopts high intensity SMC moulded structure; transparent cover is made of high-intensity polycarbonates moulded structure;
Nteger adopts sealing structure with good features of waterproof and dustproof;
High luminance, cosF≥0.95.
Equipped with emergency set, can be used for functions of normal and emergency lighting;
Built-in lamplight can be selected from single-pin tube or double-pin tube by request;
Various installation form applied to various locations.
|
|
| |
|
 |
| |
|
| 主要技術參數 Main technical parameters |
|
型號 |
防爆標志 |
額定電壓(V) |
功率因數(W) |
應急時間 |
轉換時間 |
電纜外徑 |
管螺紋 |
ADYS-1×36(40) |
ExedIICT4(單腳）
ExedmIICT4(雙腳） |
AC220/230 |
cosf≥0.95 |
*≥90 |
*≤0.5 |
Ф8-Ф12 |
G 3/4 |
ADYS-2×36(40) |
ADYS-1×18(20) |
ADYS-2×18(20) |
|
| |
|

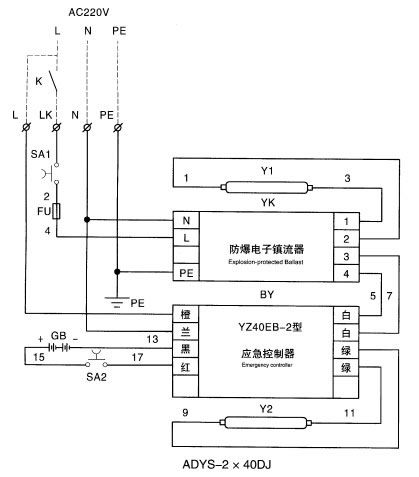

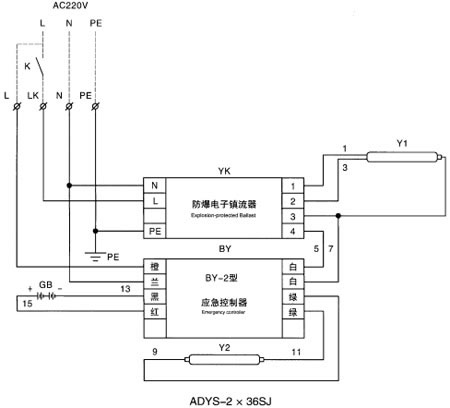

應急電氣原理圖 Emergency electrical principle chart
|
|
 |
使用說明：虛線部分接線由用戶自己來完成。L為充電電源，不受K開關控制一直處于充電狀態。LK為控制電源，由K開關來控制燈亮與滅，有電時電池充電Y1、Y2點亮，停電時應急控制器工作，Y2點亮，Y1熄滅此時電路進入應急狀態。
Instruction: The dashed part is completed by the user. L is charging power. It is not controlled by switch K and is always in the state of charging. LK is control power that controls on and off of the light by switch K. When power is on, battery is charged and Y1,Y2 are enlightened; when power is cut, emergency controller starts to work and Y2 is enlightened while Y1 quenches. Then the conduit goes into emergency state. |
 |
使用說明：虛線部分接線由用戶自己來完成。L為充電電源，不受K開關控制一直處于充電狀態。LK為控制電源，由K開關來控制燈亮與滅，有電時電池充電Y1、Y2點亮，停電時應急控制器工作，Y2點亮，Y1熄滅此時電路進入應急狀態。
Instruction: The dashed part is completed by the user. L is charging power. It is not controlled by switch K and is always in the state of charging. LK is control power that controls on and off of the light by switch K. When power is on, battery is charged and Y1,Y2 are enlightened; when power is cut, emergency controller starts to work and Y2 is enlightened while Y1 quenches. Then the conduit goes into emergency state. |
|

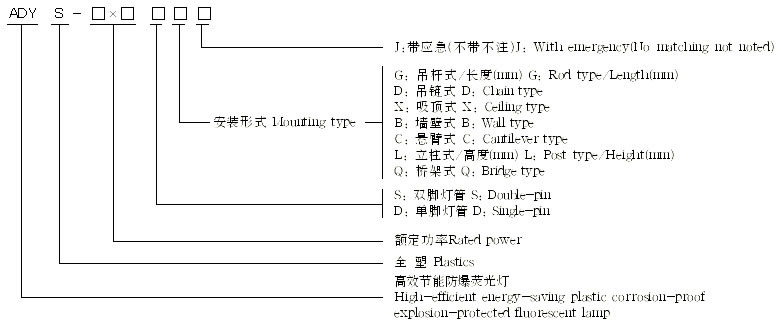

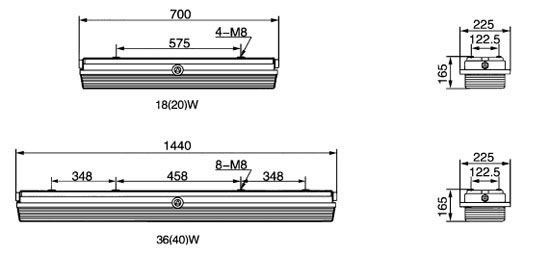

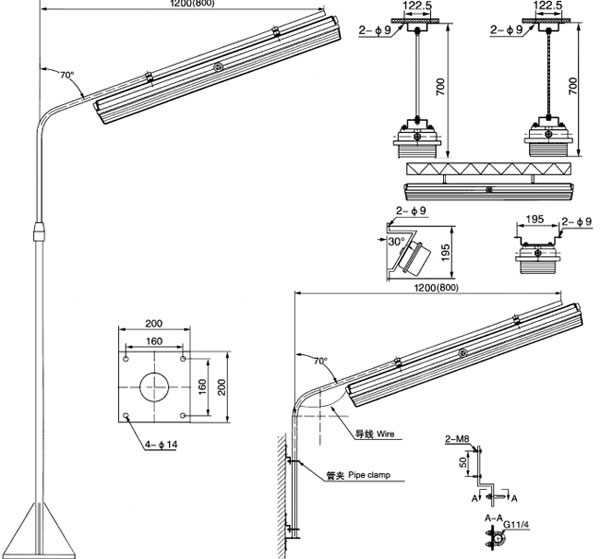

| 外形及安裝舉例 Outline and mounting example |
|
 |
 |
| |
|
| |
|
