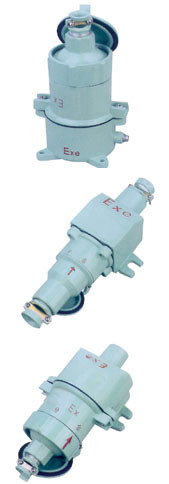

AC系列防爆插銷(IIB、IIC)
|
|
| |
|
適用范圍
1、1區、2區危險場所。
2、IIA、IIB、IIC類爆炸性氣體環境。
＊要求IIC類請注明。
Application
1、Can be used in Zone 1 and Zone 2 dangerous places.
2、Can be used in IIA, IIB, IIC group explosive atmosphere.
*Please note if want IIC group.
|
產品特點
1、鑄鋁合金外殼，表面噴塑。
2、插銷與開關制成聯鎖結構，只有開關斷開后方能拔出插頭。
3、鋼管或電纜布線均可。
4、符合GB3836-2000, IEC60079標準要求。
Features
1、The shell is of diecasted Al-alloy with plastic sprayed surface.
2、The plug together with switch is constructed to form interlocks. Only if switch is off, the plug can be drawn out.
3、Suitable for steel pipe and cable wiring.
4、Suitable for GB3836-2000, IEC 60079 standard request.

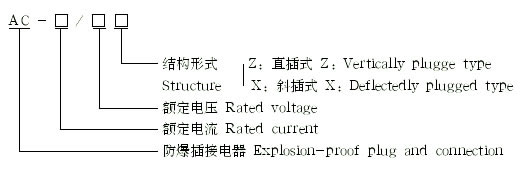

型號含義 Type designation
|
|
 |
| 主要技術參數 Main technical parameters |
|
|
|
|
極數 |
使用類別 |
|
防護等級 |
進線口螺紋 |
|
|
AC-15 |
380/220 |
15 |
1P+N |
AC-1
AC-3 |
Exde II BT6
*Exde IICT6 |
IP54 *IP55 |
3/4 |
10-14 |
2 |
AC-30 |
30 |
3P+N |
1 1/4 |
18-22 |
3.5 |
|
|
| |
|
| |
|

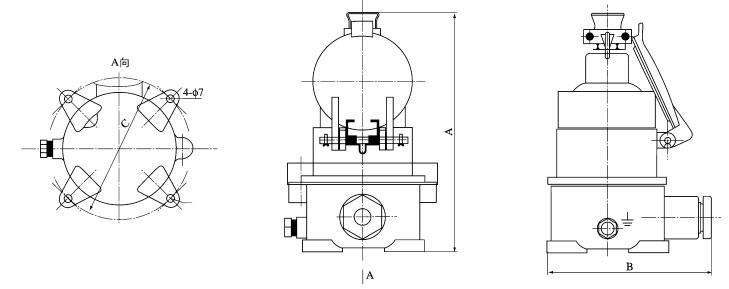

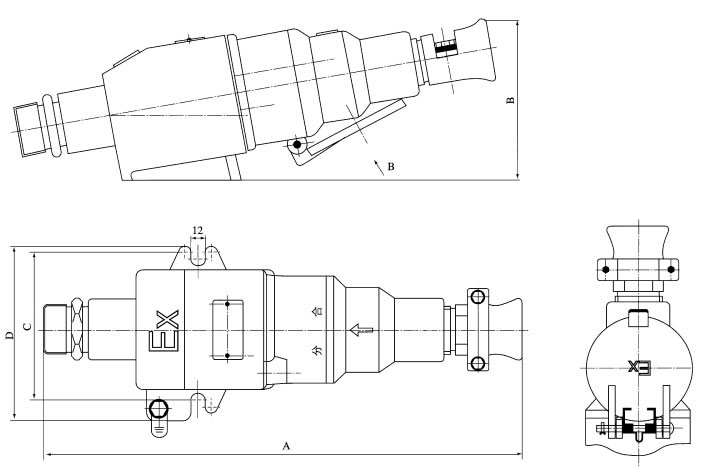

| 外形尺寸及安裝尺寸 Outline and mounting example |
|
 |
 |
| |
型 號 Type |
A |
B |
C |
D |
AC-15/□Z |
210 |
150 |
150 |
/ |
AC-15/□X |
225 |
135 |
110 |
130 |
AC-30/□Z |
300 |
190 |
125 |
/ |
AC-30/□X |
380 |
240 |
125 |
140 |
|
| |
| |
| |
|
| |
|
