BDL系列防爆電鈴(IIB)
|
|
| |
|
適用范圍
1、1區、2區危險場所。
2、IIA、IIB、IIC類爆炸性氣體環境。
＊要求IIC類請注明。
Application
1、Can be used in Zone 1 and 2 dangerous places.
2、Can be used in IIA、IIB、IIC group explosive atmosphere.
*Please note if want IIC or safety-increased type.
|
產品特點
1、鑄鋁合金外殼，表面噴塑。
2、圓筒隔爆面，防爆性能好，安全可靠。
3、鈴?fù)氡砻驽冣斍嚆~，打擊時不會引起火花。
4、符合GB3836-2000，IEC60079標準要求。
Features
1、The shell is of diecasted Al-alloy with plastic-sprayed surface.
2、Cylinder enclosure can be well explosion-proof, safe and secure.
3、 The surface of bell is brass plated, which won誸 produce sparkle when being hitten.
4、Suitable for GB3836-2000, IEC60079 standard request. |
|
 |
| |
|
| 型號含義 Type designation |
|
 |
| |
|
| 主要技術參數 Main technical parameters |
|
|
|
|
|
|
|
防護等級 |
進線口螺紋 |
電纜外徑 |
AC
DC |
36 110 220 24 36 |
≤20 |
≥75 |
125 |
Exd II BT6
Exd II CT6 |
IP54 |
3/4 |
8-14 |
|
|
| |
|

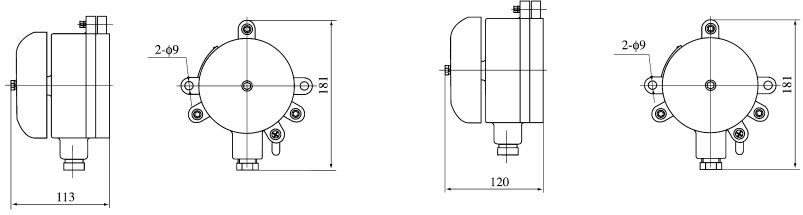

| 外形尺寸及安裝尺寸 Outline and mounting example |
|
 |
| 交流AC 直流DC |
| |
|
| |
|
